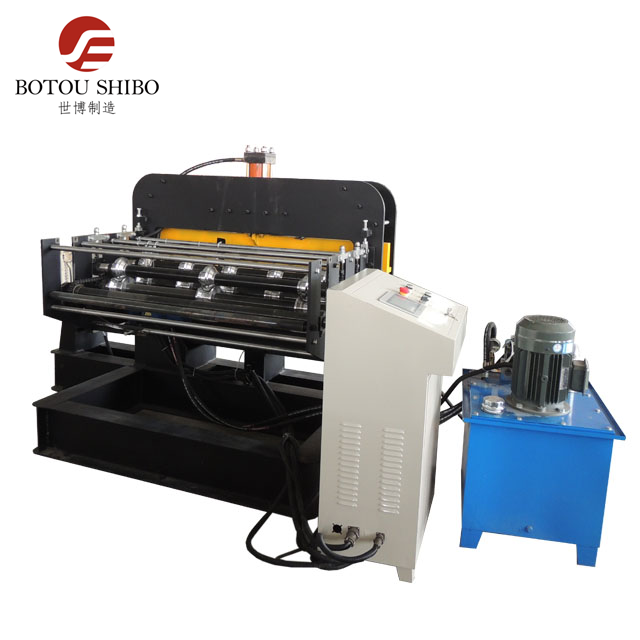

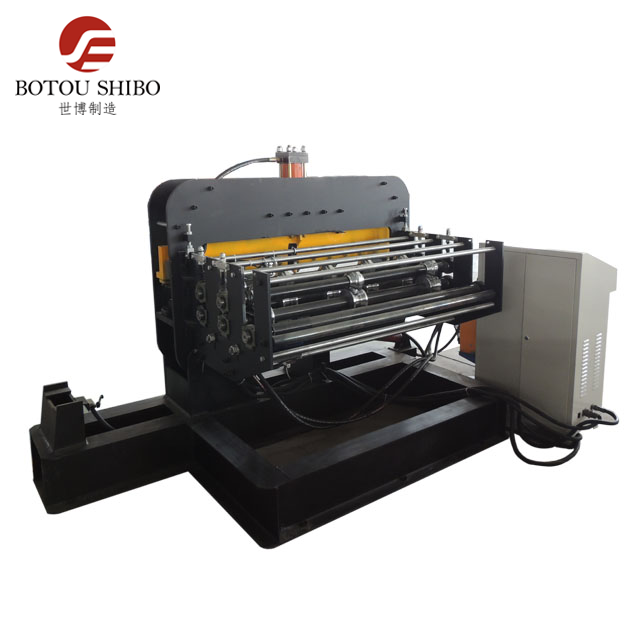

The Horizontal Hydraulic Curving Machine is designed for curving and forming metal roofing panels into smooth and accurate arc shapes. It is suitable for manufacturers and contractors producing curved roofing panels for steel structure buildings, warehouses, workshops and other construction projects.
The machine uses a hydraulic system to provide stable and powerful forming pressure. The horizontal working design allows convenient operation and consistent curving results. Machine specifications can be customized according to the roofing panel profile, material thickness, panel width and required curvature.
| Type | Tile Forming Machine | Tile Type | Steel |
| Feeding width | 914mm | Rolling thinckness | 0.3-0.8mm |
| VoltageN | 220V 60Hz 3phases | Core Components | Motor,Bearing,Gear,Pump,Gearbox,PLC |
| Use | ROOF | Warranty | 1 Year |
| Video outgoing-inspection | Provided | Machinery Test Report | Provided |
| Key Selling Points | Long Service Life | Place of Origin | Hebei,China |
| Weight | 2500kg | Brand name | SHIBO machinery |
| Dimension(L*W*H) | 2500mm*1600mm*1100mm | Raw material | PPGI |
| Control system | PLC | Press Mould material | Cr 12 |
| PLC | Delta | Roller material | 45# Forged Steel |
| Shaft material | 45# Steel Outer Diameter:75mm | After Warranty Service | Video technical support |
| After-sales Service Provided | Online support | Color | Customers Samples Color |
Equipped with a hydraulic system for stable and powerful sheet curving, ensuring smooth and reliable operation.
Advanced forming technology helps achieve consistent arch shapes and accurate bending results.
Heavy duty steel frame provides excellent stability and durability during continuous production.
Simple control system makes machine operation convenient and reduces the learning time for operators.
Forming pressure and working parameters can be adjusted according to different material thicknesses and arch requirements.
Suitable for processing color coated steel sheets, galvanized steel sheets and other metal roofing materials.
The forming process minimizes surface damage and produces smooth, uniform curved panels.
Quality hydraulic components and durable machine parts ensure stable performance for long term use.
Machine specifications, working width, forming capacity and configuration can be customized according to customer requirements.
Widely used for curved roofing panels, steel structure buildings, warehouses, workshops and other construction applications.
The Horizontal Hydraulic Curving Machine can be used for producing curved metal roofing panels for:
We provide customized hydraulic curving machine solutions according to different production requirements.
Customization options may include:
Customers can send us their product drawings, panel dimensions or project requirements. Our engineers can recommend a suitable machine configuration.
Each machine can be tested before shipment to check hydraulic operation, machine performance and forming results. We also provide technical support and operation guidance for customers.
The machine can be professionally packed and secured for container transportation to help ensure safe delivery.
As a roll forming machine manufacturer, we provide complete equipment solutions for metal roofing and steel structure applications.
Our advantages include:

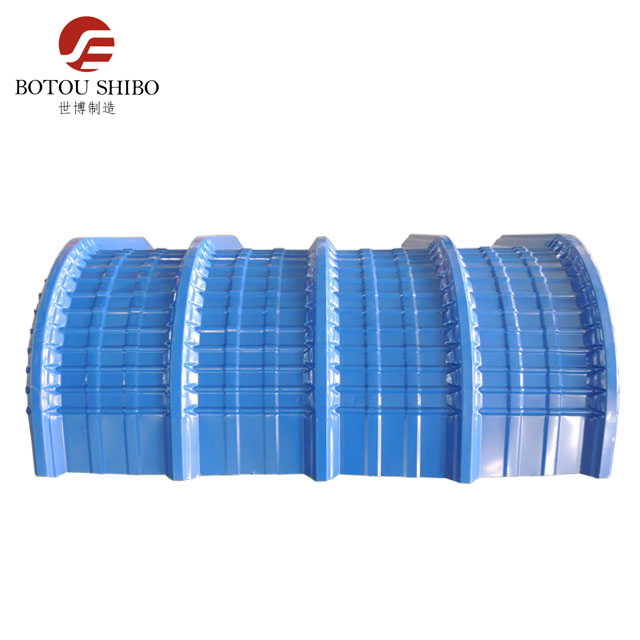

It is mainly used to curve formed metal roofing panels into arc shapes for curved roof construction and other architectural applications.
Yes. The required curving radius can be customized according to the customer's roofing panel specifications and project requirements.
The machine can be configured for suitable metal roofing panels made from materials such as galvanized steel and pre-painted steel.
Yes. We can customize the machine according to your panel profile, material thickness, working width, curving radius and other requirements.
Yes. A product drawing or sample dimensions can help our engineers recommend the appropriate machine configuration.
Looking for a reliable hydraulic curving machine for your metal roofing production?
Send us your product profile, material thickness, panel width and required curving radius. Our team will recommend a suitable solution for your project.
