1.Auto base glue painting system（closed automatic system) Out size：4000(L)×1350(W)×850(H)mm Structure：Channel steel, connect by weld Drive power：2.2Kw VVVF 32 turn/min Transporter：by circle chains Painting motor assembly：electrical motor 0.06kw Drawing dust-cleaning equipment：1 set Air compressor：1 set 0.9m³ Auto press glue pot：1set 0.1-0.6MPa Painting gun：4 sets |
|
|
2、Auto sand blast house：1set Out size：3000(L)×1850(W)×700(H)mm Structure：Channel steel, connected by weld Drive power：same with item 1. Transporter：by circle chains Auto sand funnel：1set 550(L)×600(W)×500(H)mm Auto rising equipment：1set, can rise 1.9m， Blasting gun：4 sets |
|
|
3、First drying house : 1 set Out size：25m×0.8m×1.2m Structure：High standard steel welding Frame heat preservation：1mm steel+Thermal insulation board Auto temperature controller：2sets control scope：0-160 ℃ Infrared fluorescent tube：50 pcs Transporter：by circle chains Cold equipment：1set |
|
|
4、Auto surface glue panting system: 1 set Out size：3000(L)×850(W)×700(H)mm Structure：Carbon steel welding Auto glue painting gun：2 sets Auto painting power：1 set press scope 0.1-0.6MPa Drawing dust-cleaning equipment：1 set Manual painting gun：5 sets |
|
|
5、Second drying house: 1 set Out size：30000(L)×850(W)×700(H)mm Structure：Carbon steel welding Frame heat preservation : 30m,1mm steel + Thermal insulation board Transporter ：by circle chains Infrared fluorescent tube：50 pcs Auto temperature controller：2sets control scope：0-160 ℃ Cold equipment：1 set |
The whole electrical control cabinet : 1set
Capacity: 3-6m/min, 1500 pcs tiles/ 8 hour
Power of whole working line：113kw.

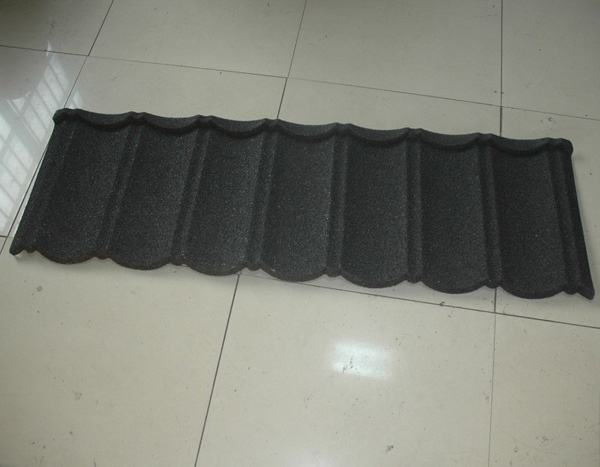

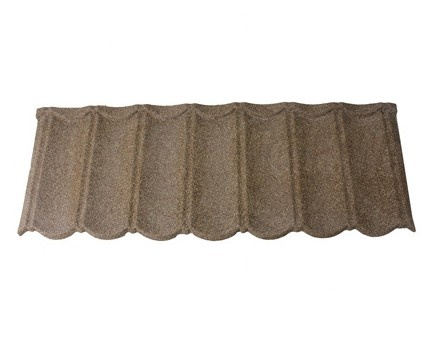

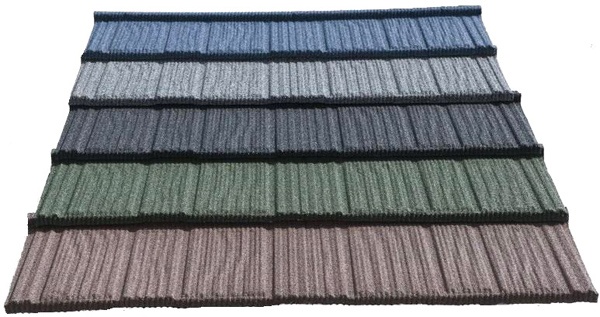

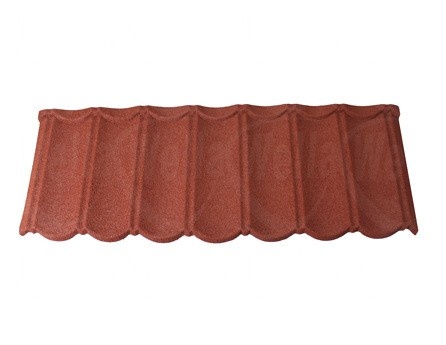

The tiles our machine can produce:
